All DSO Cooled Cameras need to be connected to an external 11-14v power supply to image.

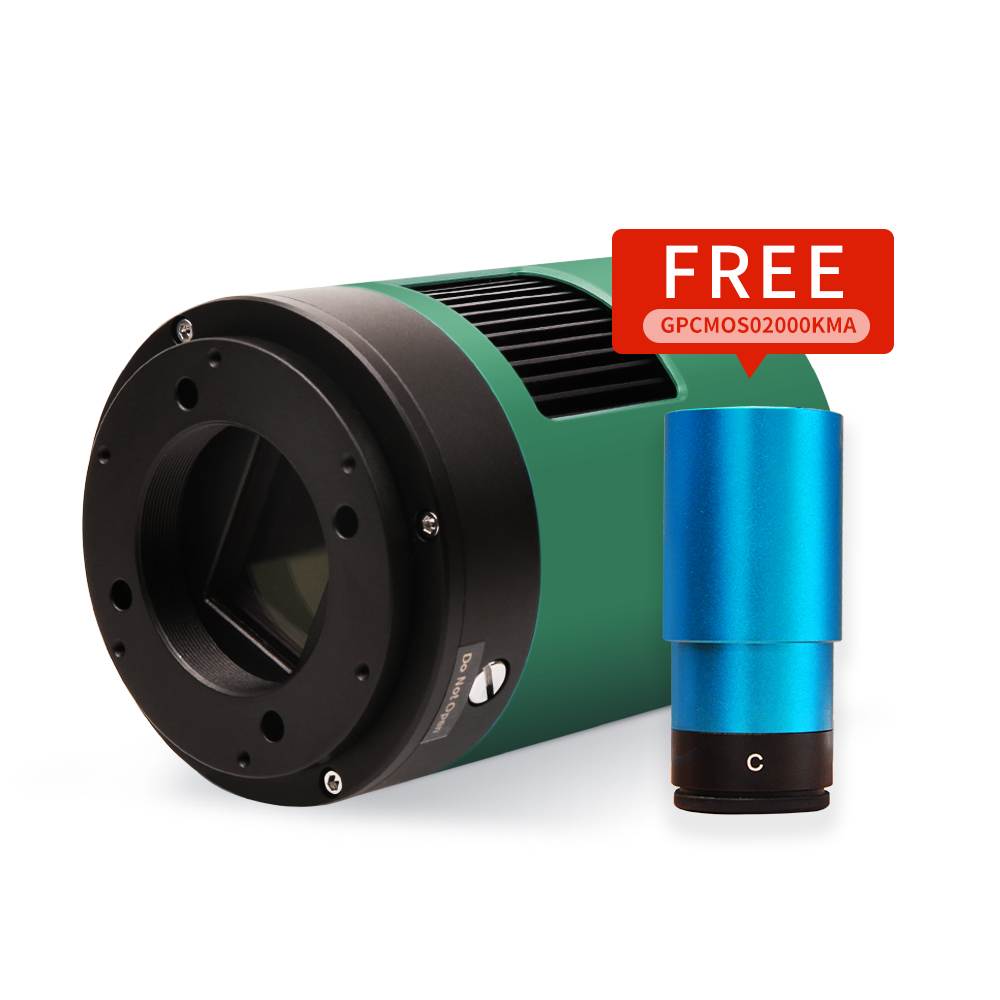

ATR585M camera incorporates the advanced SONY IMX585 sensor, renowned for its exceptional imaging capabilities for both planetary and deep-sky objects. Engineered with an integrated heat dissipation structure and an efficient cooling module, it enables the image sensor to function at a temperature 45℃ lower than the ambient environment. With features including zero amp-glow, a minuscule pixel size, and a high dynamic range (HDR) mode. This camera is ideal for entry-level deep space photography, offering outstanding performance at a remarkably cost-effective price point.
Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
STARVIS 2
STARVIS refers to the backlight image sensor technology developed by Sony to improve low light characteristics and near-infrared sensitivity. STARVIS 2 improves dynamic range and near-infrared sensitivity compared to STARVIS1. Benefiting from it, ATR585M shows better performance.
Sensor Infor
ATR585M is a 1/1.2-inch optical format, 8.3-megapixel CMOS image sensor with a pixel size of 2.9um. lt offers high clarity and low-noise performance.
DDR3
ATR585M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.
Two stage TEC cooling system
ATR585M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR585M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 45 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR585M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.
Anti-dew technology
ATR585M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating.
This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.
Camera parameters（Full resolution、RAW 12-bit mode、Temperature: -10°C、LCG）
Camera parameters（Full resolution、RAW 12-bit mode、Temperature: -10°C、HCG）
Camera parameters（Full resolution、RAW 16-bit HDR mode、Temperature: -10°C）
Spectral Response
Mechanical Diagram
Connection with Accessories
Packaging List
I am extreamly pleased with this Camera / Filter wheel bundle. The SHO filters give great results at this price point. Well done ToupTek.
The package was fast delivered within 7 days. I also got in touch with the support and was really happy with their help!
Initially the camera worked out of the box as expected in combination with NINA. But one day later suddenly is was not possible anymore to download images after image acquisition wich lead to an error message in NINA. Meanwhile I tried to reinstall the driver once again but without any success.
When I connect the camera with Sharpcap everything works fine.
So no Idea what’s wrong.
The bundle with the camera, filter wheel and filters is astonishing good. Everything was recieved in time and as agreed. I had a problem with douane taxes quickly sorted out by Touptek. I encorugae anyone to buy with them. Excellent seller!!! Excellent product!!! And excellent backup from Touptek!!!
Shipping was super fast, only 5 days from China to Argentina. Everything was very well packaged. Then, in my country, I had an additional 7 days of delay due to local mail.
The camera works perfectly. The image quality is impressive; it delivers on everything the seller promised. The HDR mode is magical! I can take long exposures and the stars don't saturate.
I've only had a few issues exposing during autofocus with NINA. I had to disconnect and reconnect the camera.
I used the camera in very humid weather; it cools quickly, maintains the temperature correctly (only fluctuating 0.1°C), and I had no condensation issues. Condensation control is something important to keep in mind when compared to other brands. ;)
The combo offer with the wheel and filters is unmissable.
Oh, the best! I no longer need to take dark frames!
The images: NGC6188 (70x120sec Ha + flats + bias, Newton 150/750mm, Bortle 8-9).
M16 (1x120 sec Ha) uncalibrated, just a test the first night between clouds, same telescope.
