ToupTek Astro

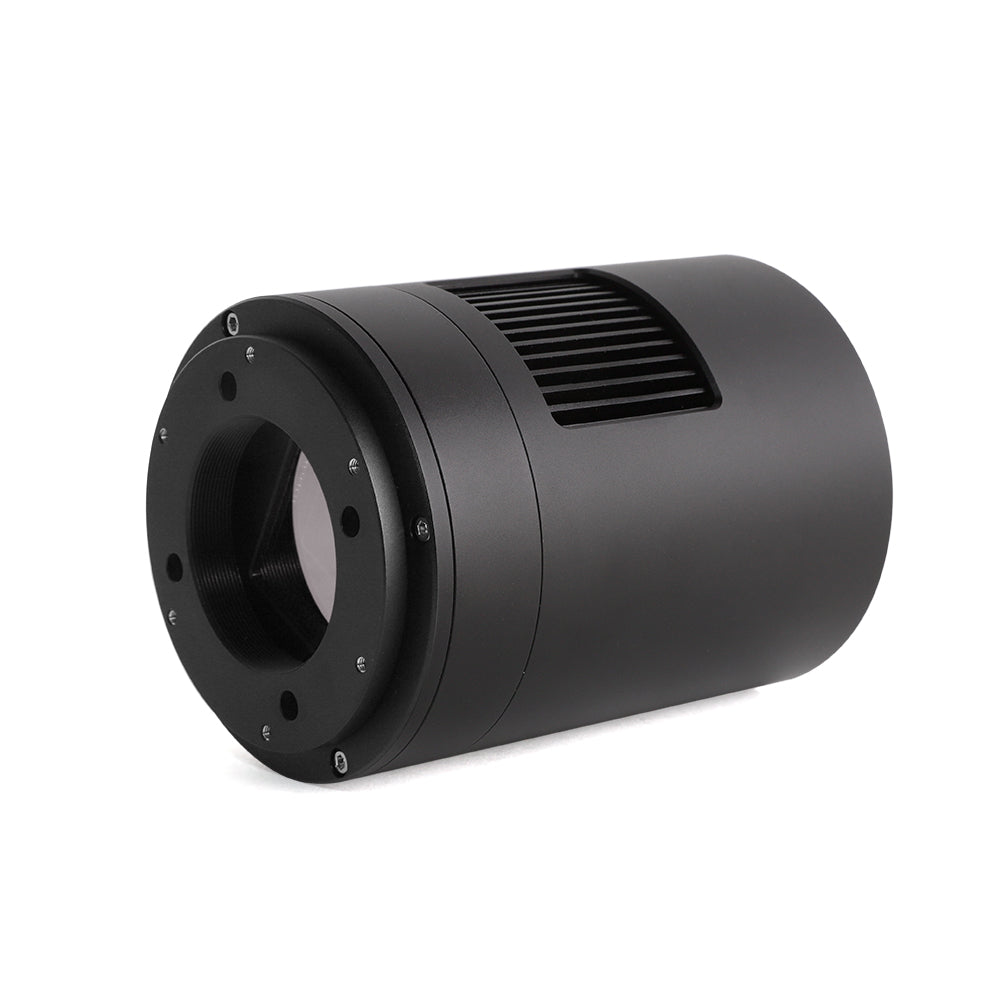

ATR294C

ATR294C

ATR3CMOS10300KPA | IMX294 | Color Camera
Regular price $759.00 USD
Regular price $799.00 USD Sale price $759.00 USD
Save: $40 Sold out
Shipping calculated at checkout.
IR Cut filter
Cable
Color
View full details
  • Payment Payment
    Accept credit cards and PayPal
  • shippment Payment
    Complimentary global delivery for purchases exceeding USD 179
  • support Payment
    Enjoy a complimentary two-year warranty service
  • service Payment
    Benefit from personalized, one-on-one premium service
Description
REVIEWS

All DSO Cooled Cameras need to be connected to an external 11-14v power supply to image.

ATR294C features a high-resolution sensor with a 4128x2880 pixel array, utilizing 4.63μm pixels , 4/3inch optical format and built-in 14-bit ADC, 15ke full well,supports binning mode. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1℃, while the dew prevention heater (window heating) further enhances performance.

ATR294C

Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.

ATR294C

Sensor Infor

ATR294C features Sony IMX294 4/3-inch Optical Format sensor.
Image Area:19.1mmx13mm,
Diagonal:23.1mm
Pixel Size:4.63μmx4.63μm

ATR294C

DDR3

ATR294C camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.

ATR294C

Two stage TEC cooling system

ATR294C is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR294C features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.

ATR294C

Anti-dew technology

ATR294C adopts the new anti-dew technology , which can effectively solve the condensation problem through heating.

This heating function consumes about 5 watts, which can be turned off via software to save power.

Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.

Camera parameters(Full resolution、RAW 14-bit mode、Temperature: -10°C、HCG)

ATR294C

Camera parameters(Full resolution、RAW 14-bit mode、Temperature: -10°C、LCG)

ATR294C

Spectral Response

ATR294C

Mechanical Diagram

ATR294C ATR294C ATR294C ATR294C

Connection with Accessories

ATR294C

Packaging List

ATR294C
ATR294C
