ToupTek Astro

ATR432C

ATR432C

ATR3CMOS01700KPA | IMX432C | Color Camera
Regular price $1,299.00 USD
Regular price Sale price $1,299.00 USD
Save: $-1,299 Sold out
Tax included. Shipping calculated at checkout.
IR Cut filter
Cable
View full details
  • Payment Payment
    Accept credit cards and PayPal
  • shippment Payment
    Complimentary global delivery for purchases exceeding USD 189
  • support Payment
    Enjoy a complimentary two-year warranty service
  • service Payment
    Benefit from personalized, one-on-one premium service
Description
REVIEWS

All DSO Cooled Cameras need to be connected to an external 11-14v power supply to image.

ATR432C features a resolution of 1600x1100 pixels, 9 μm pixels and a 1.1-inch optical format.It offers support for high frame rate mode(109FPS at all Pixel Readout 12 bit),and has a readout noise level as low as 2.4e. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1℃, while the dew prevention heater (window heating) further enhances performance.

ATR432C

Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.

ATR432C

Sensor Infor


ATR432C features Sony IMX432C 1.1inch Format sensor
Diagonal: 17.5mm
Pixel Size: 9μm x 9μm

ATR432C

DDR3

ATR432C camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.

ATR432C

Two stage TEC cooling system

ATR432C is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR432C features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.

ATR432C

Anti-dew technology

ATR432C adopts the new anti-dew technology , which can effectively solve the condensation problem through heating.

This heating function consumes about 5 watts, which can be turned off via software to save power.

Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.

Camera parameters for performance analysis (Full res, RAW 12-bit, Temp: -10C, HCG)

ATR432C

Camera parameters for performance analysis (Full res, RAW 12-bit, Temp: -10C, LCG)

ATR432C

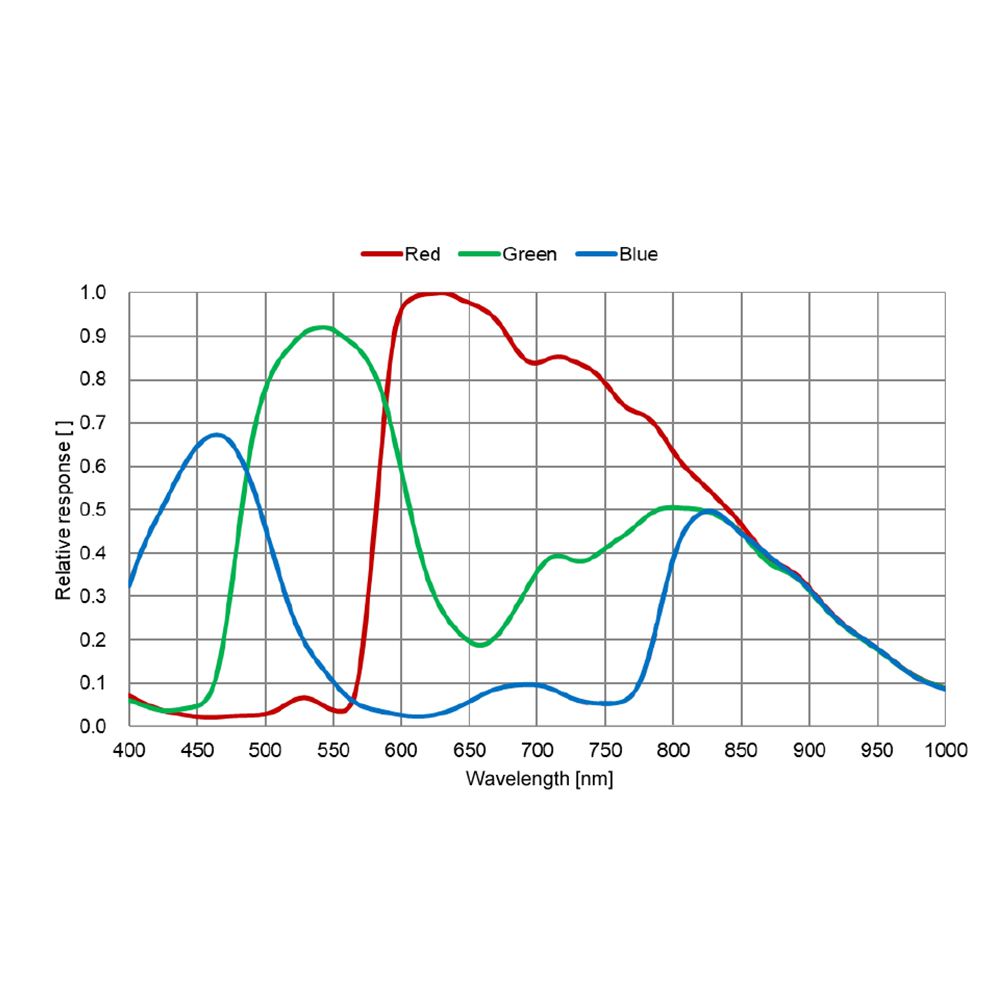

Spectral Response

ATR432C

Mechanical Diagram

ATR432C ATR432C ATR432C ATR432C

Connection with Accessories

ATR432C

Packaging List

ATR432C
